Potato Starch Processing Plant
Fully Automatic Potato Starch Production Machine
Potato Starch Production Machine

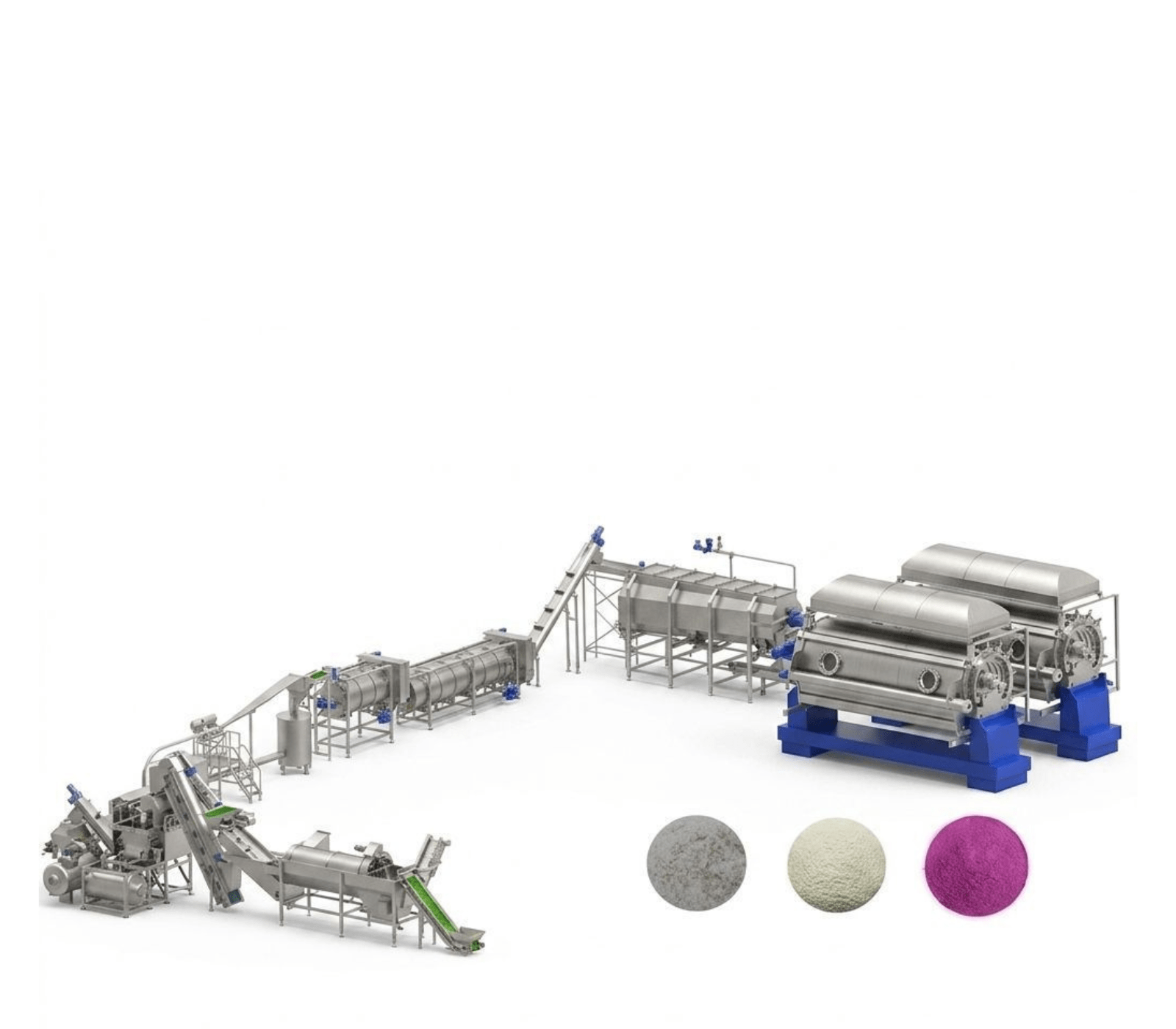

Fully Automatic Potato Starch Production Line with a finished product capacity of 500 Kg/Hour is a high-end industrial installation designed for primary starch extraction. Unlike starch recovery systems, this plant converts fresh potatoes into high-purity starch powder through a fully automated wet milling process. To produce 500 Kg of finished starch per hour, approximately 3 to 4 Tons of raw potatoes per hour are required depending on the starch content of the potatoes.
Technical Specifications of Potato Starch Machinery
| Feature | Details |
|---|---|
| Input Capacity | 3,000 – 4,000 Kg/Hour (Raw Potatoes) |
| Output Capacity | 500 Kg/Hour (Standard Starch Powder) |
| Electricity Load | 150 – 200 kW (Installed Power) |
| Water Consumption | 8 – 12 m³/Hour (Soft Water Preferred) |
| Steam Requirement | 0.6 – 1.0 Ton Steam/Hour (Flash Dryer) |
| Operator Requirement | 4 – 6 Skilled Operators / Shift |
| Land Area Required | Approx. 30m × 8m (240 m²) |
Process Flow & Machine Details
Cleaning & Washing
The production process begins with a Dry Sieve or De-stoner to remove sand, stones, and heavy impurities, followed by a Rotary Drum Washer and Brush Cleaner that thoroughly clean potatoes before crushing.
High-Speed Rasper
The rasper operates at over 2000 RPM to break potato cells and release starch granules efficiently, achieving starch dissociation rates of up to 98%.
Centrifugal Extraction
A multi-stage centrifugal sieve separates starch milk from potato pulp and fiber while maximizing starch recovery efficiency.
Desander System
Cyclone desanders remove fine sand particles and abrasive impurities from the starch milk before the refining stage.
Hydro Cyclone Refining
A 12–18 stage hydro cyclone station washes starch milk with fresh water to remove proteins, fats, and cell sap, producing high-purity white starch.
Vacuum Dewatering
Vacuum filters or peeler centrifuges reduce moisture from approximately 60% to 38–40%, producing a starch cake ready for drying.
Flash Dryer
Hot air rapidly dries the starch cake inside a vertical airflow drying system, producing fine starch powder with a final moisture content of 13–18%.
Sifting & Packaging
The dried starch passes through a vibrating sieve before being packed automatically into 25 Kg or 50 Kg bags for storage and transportation.
Utility & Infrastructure Requirements
Water Quality
Soft water with low calcium and magnesium content is essential for starch extraction to maintain product whiteness and prevent discoloration.
Waste Management
The plant produces potato pulp and cell liquid. Potato pulp is commonly utilized as valuable animal feed, while wastewater should be treated using an Effluent Treatment Plant (ETP).
Industrial Boiler
A Gas, Diesel, or Wood-fired boiler supplies steam for the Flash Dryer, ensuring continuous and energy-efficient drying performance.
Available Final Product Starch Capacities
| Sr. No. | Final Product Starch Capacity |
|---|---|
| 1 | 500 Kg/Hour |
| 2 | 1000 Kg/Hour |
| 3 | 2000 Kg/Hour |
| 4 | 3000 Kg/Hour |
| 5 | 5000 Kg/Hour |
Start Your Potato Starch Manufacturing Project
Contact our team for complete plant consultation, process design, capacity planning, equipment selection, and turnkey potato starch production solutions.
